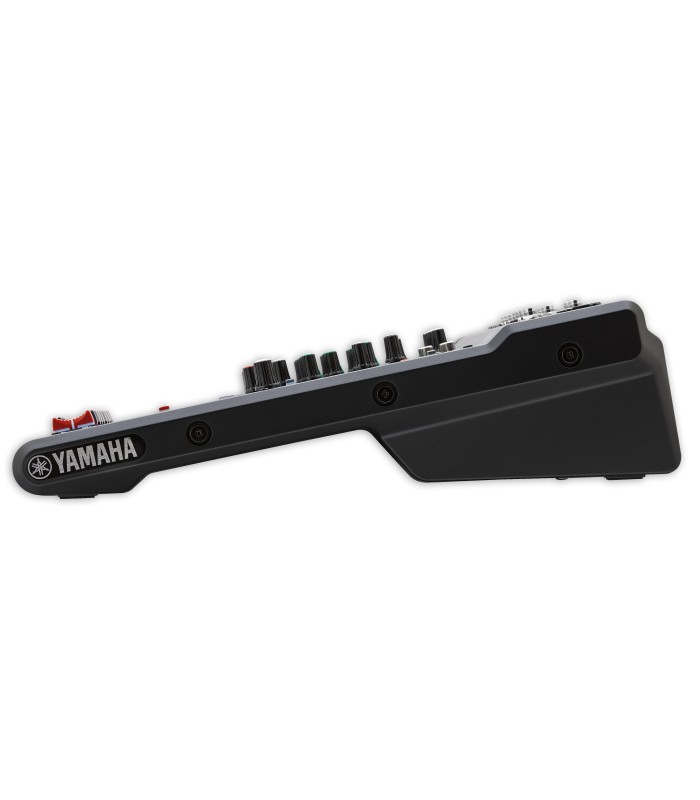

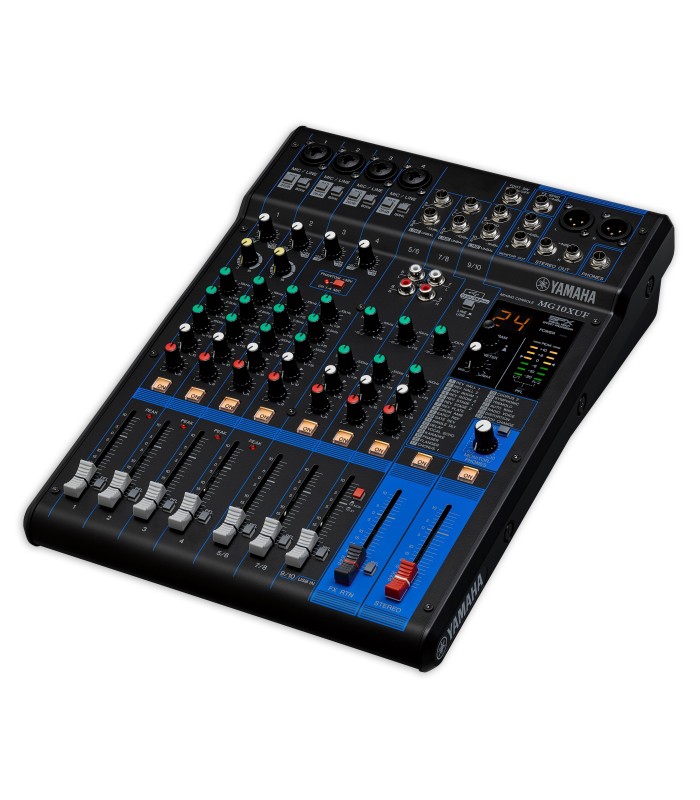

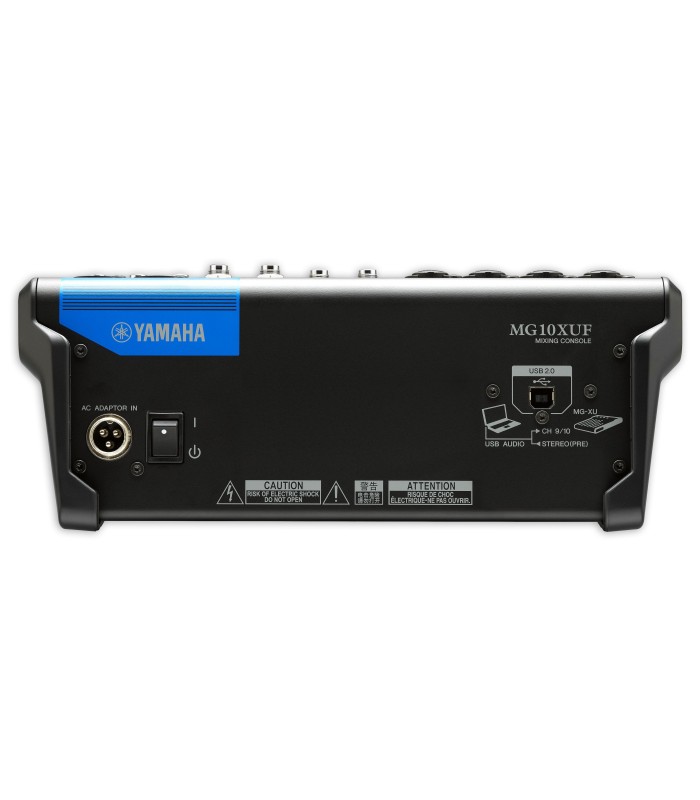

Mixing Console Yamaha MG10XUF 10 Channels with Effects

Specifications:

• Model: MG10XUF
• Channels: 10
• On-board processors:
• SPX algorithm (24 programs)
• 1 parameter control
• 1 Foot SW (FX RTN CH on/off)
• Phantom power: +48 V
• Digital I/O:
• USB Audio Class 2.0 compliant
• Sampling frequency (Max 192 kHz, Bit Depth: 24-bit)
• Input channels:
• Mono (Mic/Line): 4
• Stereo(Line): 3
• Output channels:
• Stereo out: 2
• Monitor out: 1
• Phones: 1
• Aux send: 1
• Bus: Stereo: 1, AUX(FX):1
• Input channel function:
• PAD: 26 dB (Mono)
• HPF: 80 Hz, 12 dB/oct (Mono)
• COMP: 1-knob compressor; threshold (+22 dBu to -8); Ratio (1:1 to 4:1);Output level(0 dB to 7dB); Attack time(approx. 25 msec); Release time(approx. 300 msec)
• EQ HIGH: Gain(+15 dB/-15 dB frequency); Frequency(10 kHz shelving)
• EQ MID: Gain(+15 dB/-15 dB frequency); Frequency(2.5 kHz peaking)
• EQ LOW: Gain(+15 dB/-15 dB frequency); Frequency(100 kHz shelving)
• PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
• Level meter: 2 x 7 -segment LED meter (PEAK, +10, +6, 0, -6, -10, -20 dB)
• Total harmonic distortion:
• 0.03 % @ +14dBu (20 Hz to 20kHz)
• GAIN knob: Min, 0.005 % @ +24dBu (1kHz)
• GAIN knob: Min
• Frequency response:
• +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz
• GAIN knob: Min
• Hum and noise level:
• Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
• Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
• Crosstalk: -83 dB
• Power requirements: PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
• Power consumption: 22.9W
• Dimensions:
• Width: 275 mm (10.8")
• Height: 110 mm (4.3")
• Depth: 390 mm (15.4")
• Net weight: 3.3 kg (7.3lbs)
• Included accessories:
• AC adaptor
• Owner’s Manual
• Cubase AI Download Information
• Technical Specifications
• Optional accessories (not included):
• Foot Switch FC5
